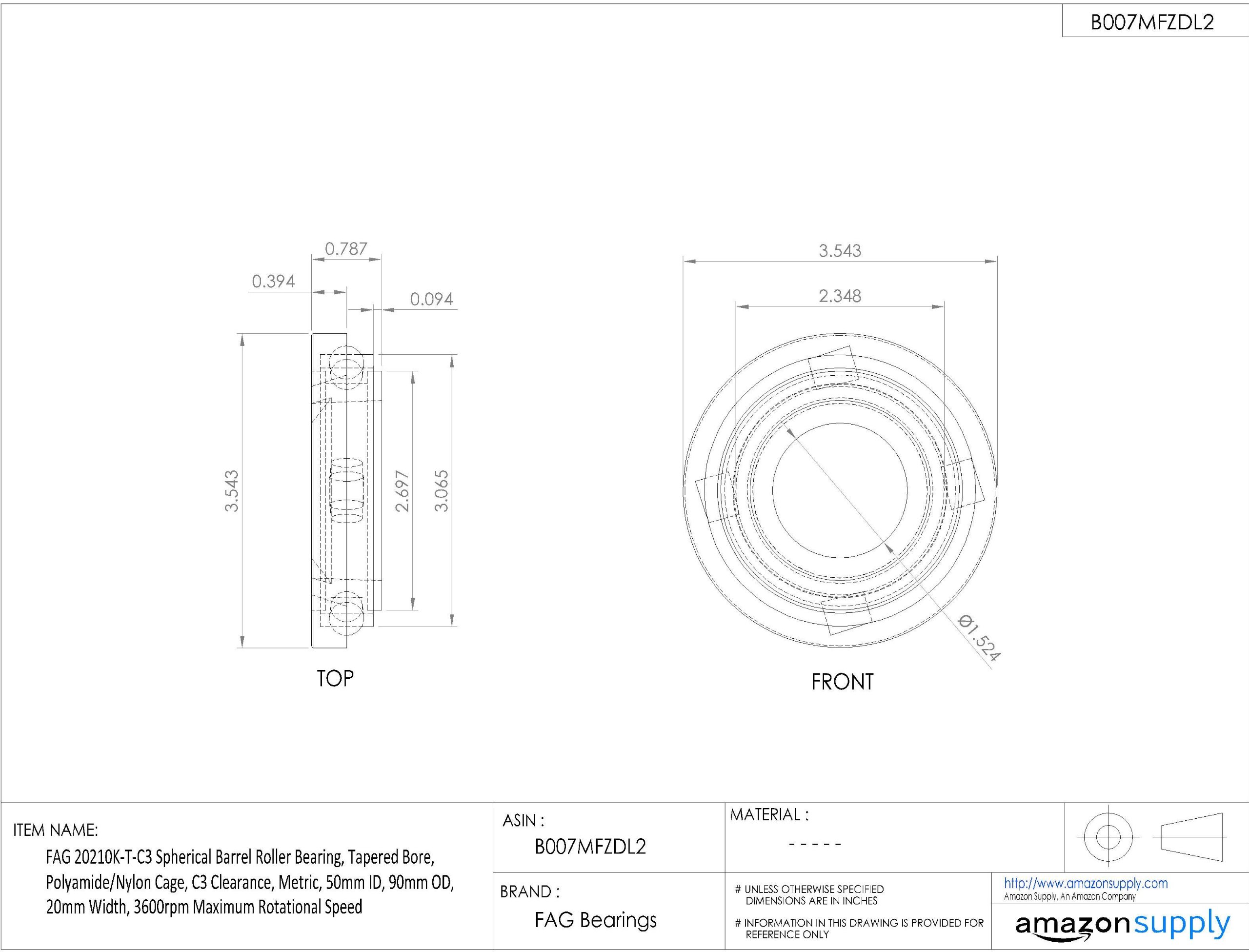

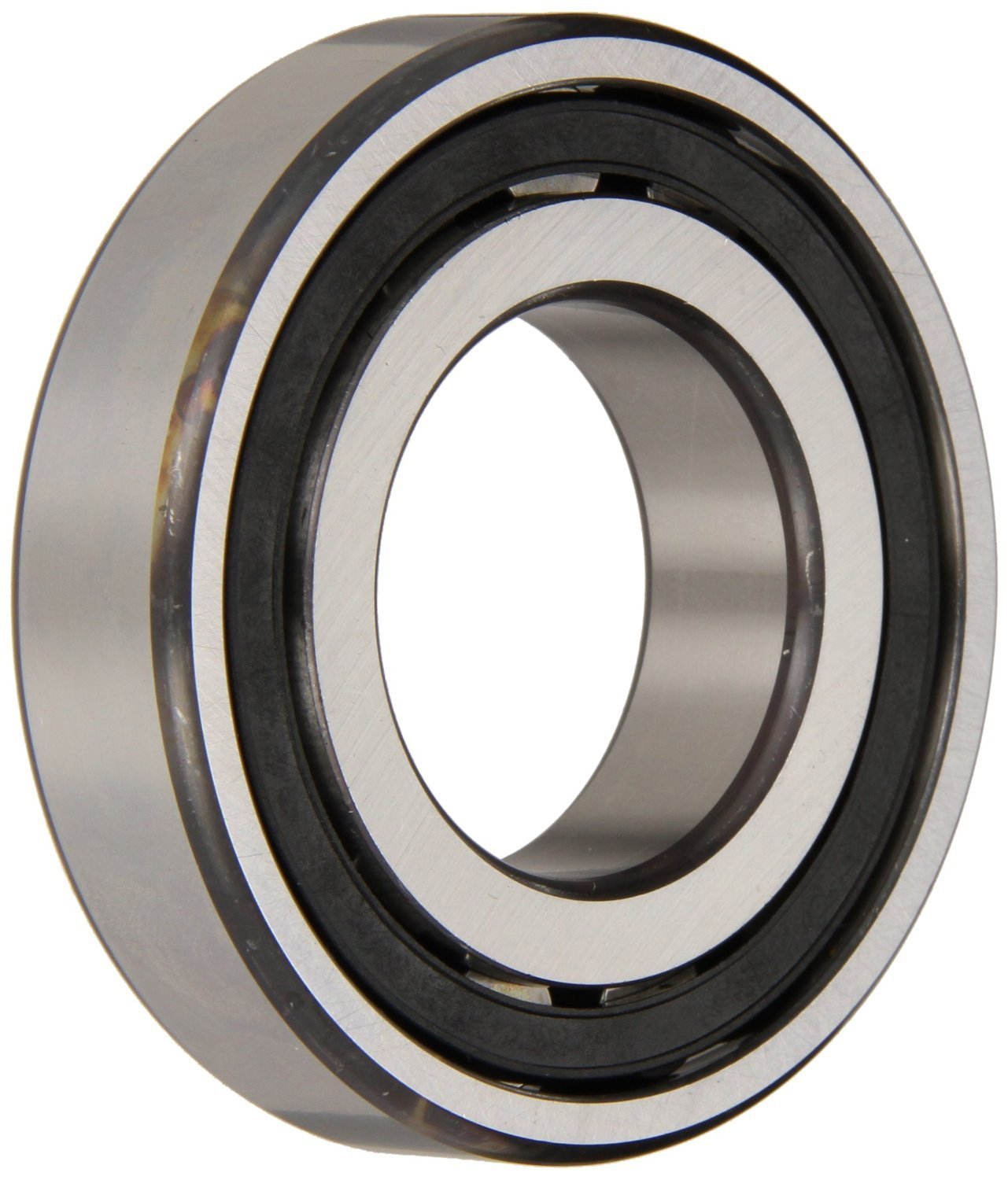

High-Performance 20210K-T-C3 Spherical Barrel Roller Bearing - Tapered Bore, Nylon Cage, C3 Clearance (50mm ID, 90mm OD, 20mm Width) - 3600 RPM for Industrial Machinery, Heavy Equipment & Automotive Applications

This FAG spherical barrel roller bearing has a polyamide and nylon cage, a C3 radial clearance, and a 1:12 tapered bore suitable for applications that support high radial shock loads and maximum misalignment adjustment, such as in a belt conveyor system. The one-piece polyamide and nylon window-type cage is lightweight, spaces the rollers for even load distribution, and prevents contact to reduce friction, vibration, and noise. This roller bearing's C3 radial clearance is larger than normal for applications where impact loads and vibration are severe, both the inner and outer rings are tight fitted, or thermal expansion is a factor. The bearing's 1:12 taper compensates for flexing shafts and fits tapered shafts. This bearing has a single row of self-aligning barrel rollers oriented on a concave raceway and a solid inner ring with two ribs to support high radial shock loads and maximum misalignment adjustment. The bearing has a maximum operating temperature of 248 degrees F. This roller bearing is intended for interchangeability and meets Deutsches Institut für Normung (DIN) standards for parts numbering, bearing dimensions, load ratings, tolerances, and clearances. It meets International Standards Organization (ISO) standards for hardening of bearing rollers and rings. This spherical barrel roller bearing is suitable for use in material handling equipment, electric generators, and machine tools.SpecificationsMain bearing dimensionsDIN 635-1Basic dynamic load ratingsDIN ISO 281Dimensional and geometric tolerancesDIN 620-2, (ISO 199:1997) tolerance class PNSteel composition for inner and outer rings and rollersISO 683-17System for creating part numbersDIN 623-1Roller bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All roller bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. The company, founded in 1883, is based in Schweinfurt, Germany.
